High Quality Open/Silent Type Quanchai Diesel Generator 16KW/20KVA Power Supply Water Cooling

1 TAKIM
MOQ
3199-3432USD
fiyat
High Quality Open/Silent Type Quanchai Diesel Generator 16KW/20KVA Power Supply Water Cooling
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Hız: 1500RPM
Sıklık: 50/60 Hz
Nominal Güç: 5KW'dan 2000KW'a
Çıkış türü: AC Üç Fazlı
Tip: Açık veya Sessiz (süper Sessiz)
Renk: İhtiyacınıza göre, Özelleştirilmiş
Vurgulamak:

Quanchai silent diesel generator 16KW

,

water cooling diesel generator 20KVA

,

open type diesel generator with warranty
Temel bilgiler
Menşe yeri: Çin
Marka adı: QUANCHAI
Model numarası: QC490D
Ödeme & teslimat koşulları
Ambalaj bilgileri: kontrplak
Teslim süresi: 40 iş günü
Ödeme koşulları: L/C, T/T
Yetenek temini: Ayda 50 takım
Ürün Açıklaması
High Quality Open/Silent Type Quanchai Diesel Generator 16KW/20KVA Power Supply Water Cooling
Factory Price Open/Silent Type Quanchai Diesel Generator 16KW/20KVA Power Supply Water Cooling
Product Overview
High quality water cooling QUANCHAI diesel generator available in both open and silent configurations to meet diverse operational requirements.
Key Features
  • Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
  • 50°C radiator with fan for optimal engine cooling during extended operation
  • Advanced control systems including generator set control, ATS system, remote control, and parallel operation
  • High-quality steel canopy construction (2MM to 6MM thickness)
  • High-density sound-absorbing material for effective sound insulation and fireproofing
  • 12V/24V DC battery with charger and connecting wires
  • 10-12 hours fuel tank with fuel indicator for continuous operation
  • High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
  • Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
  • Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
  • Double open doors on both sides for comprehensive engine and alternator access
  • Available in silent, super silent, soundproof, trailer type, and container type configurations
  • Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 20 22
Power Rating (kW) 16 18
Frequency (Hz) 50
Engine Model QC490D
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated voltage (V) 400/230
Fuel tank capacity operating time ≥ 8h @ 75% load
PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Dimension and Weight Open Type BQ22 Silent Type BQ22S
Length (L) mm 1350 1950
Width (W) mm 610 850
Height (H) mm 1100 1050
Tank capacity (L) 37 37
Engine Specifications
Engine model & manufacturer QC490D(QUANCHAI)
Model QC490D
Bore*Stroke(mm) 90×105
Total Displacement(L) 2.672
Rated Power(kw) 21 | 25
Standby Power(kw) 24 | 28
Rated Speed(r/min) 1500 | 1800
Rated Power For Generator Sets (kva) 21 | 25
Standby Power For Generator Sets (kva) 24 | 28
Rated Power For Generator Sets(kw) 16.8 | 20
Standby Power For Generator Sets (kw) 19 | 22.5
Steady State Speed Governing Rate % ≤5
Max Speed On No Load(r/min) 1575
Min Speed On No Load(r/min) 800
Specific Fuel Consumption Rate At Max. Speed (g/kW*h) ≤243
Net Weight (kg) 230
Dimension(L*W*H) (mm) 775×590×690 (WITHOUT AIR FILTER AND RADIATOR)
Rotation (Viewed From Flywheel) COUNTER CLOCKWISE
Flywheel House Sizing SAE4＃ SAE3＃
Flywheel House Sizing SAE7.5″SAE10″ SAE11.5″
Number Of Teeth Of The Flywheel 120
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-184ES
Alternator Rated Power 16kw/20kva
Rated voltage (V) 230v/400v
Rated frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%
Standard Components
  • Heavy duty diesel engine
  • Starter battery (with lead acid) including rack and cables
  • Anti-vibration mount
  • Flexible fuel connection hoses
  • Replaceable fuel filter, oil filter & air filter
  • Exhaust silencer and bellows
  • Cooling radiator and fan
  • Operation manuals and circuit diagram documents
Product Images

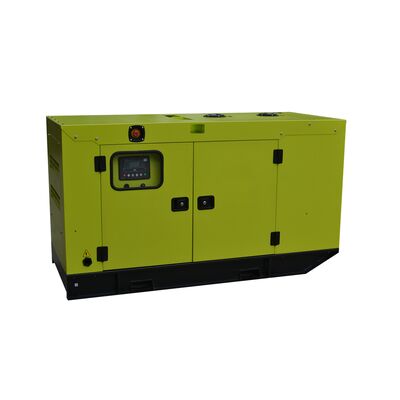

High Quality Open/Silent Type Quanchai Diesel Generator 16KW/20KVA Power Supply Water Cooling 0
Front View

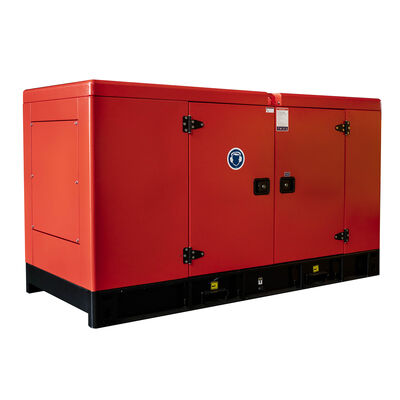

High Quality Open/Silent Type Quanchai Diesel Generator 16KW/20KVA Power Supply Water Cooling 1
Side View

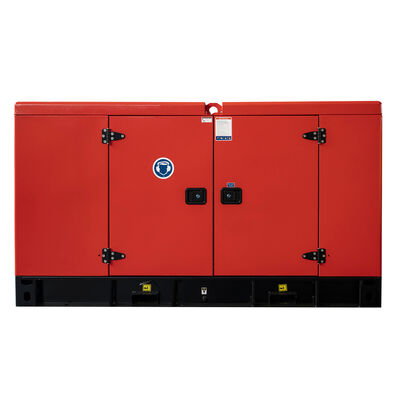

High Quality Open/Silent Type Quanchai Diesel Generator 16KW/20KVA Power Supply Water Cooling 2
Control Panel
High Quality Open/Silent Type Quanchai Diesel Generator 16KW/20KVA Power Supply Water Cooling 3
Engine Detail
High Quality Open/Silent Type Quanchai Diesel Generator 16KW/20KVA Power Supply Water Cooling 4
Alternator View
High Quality Open/Silent Type Quanchai Diesel Generator 16KW/20KVA Power Supply Water Cooling 5
Silent Type Exterior
High Quality Open/Silent Type Quanchai Diesel Generator 16KW/20KVA Power Supply Water Cooling 6
Internal Components
High Quality Open/Silent Type Quanchai Diesel Generator 16KW/20KVA Power Supply Water Cooling 7
Cooling System
High Quality Open/Silent Type Quanchai Diesel Generator 16KW/20KVA Power Supply Water Cooling 8
Fuel System
High Quality Open/Silent Type Quanchai Diesel Generator 16KW/20KVA Power Supply Water Cooling 9
Electrical Connections
High Quality Open/Silent Type Quanchai Diesel Generator 16KW/20KVA Power Supply Water Cooling 10
Full Assembly
High Quality Open/Silent Type Quanchai Diesel Generator 16KW/20KVA Power Supply Water Cooling 11
Quality Inspection
Specifications and illustrations are subject to revision without notice.
