SDEC 6KTAA25-G39 520kW Diesel Generator for Construction and Mining

1
MOQ
USD 300-860
fiyat
SDEC 6KTAA25-G39 520kW Diesel Generator for Construction and Mining
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Vurgulamak:

520kW SDEC diesel generator

,

mining diesel generator with warranty

,

construction site diesel generator
Temel bilgiler
Menşe yeri: Çin
Marka adı: SDEC
Model numarası: SDEC 6KTAA25-G39
Ödeme & teslimat koşulları
Ambalaj bilgileri: 540*200*250cm
Teslim süresi: 30 İŞ GÜNÜ
Ödeme koşulları: L/C, T/T, D/P
Yetenek temini: Ayda 500 pc
Ürün Açıklaması
SDEC 6KTAA25-G39 520kW Diesel Generator for Construction and Mining
Product Overview

Our SDEC 6KTAA25-G39 Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned SDEC engine, this 520kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

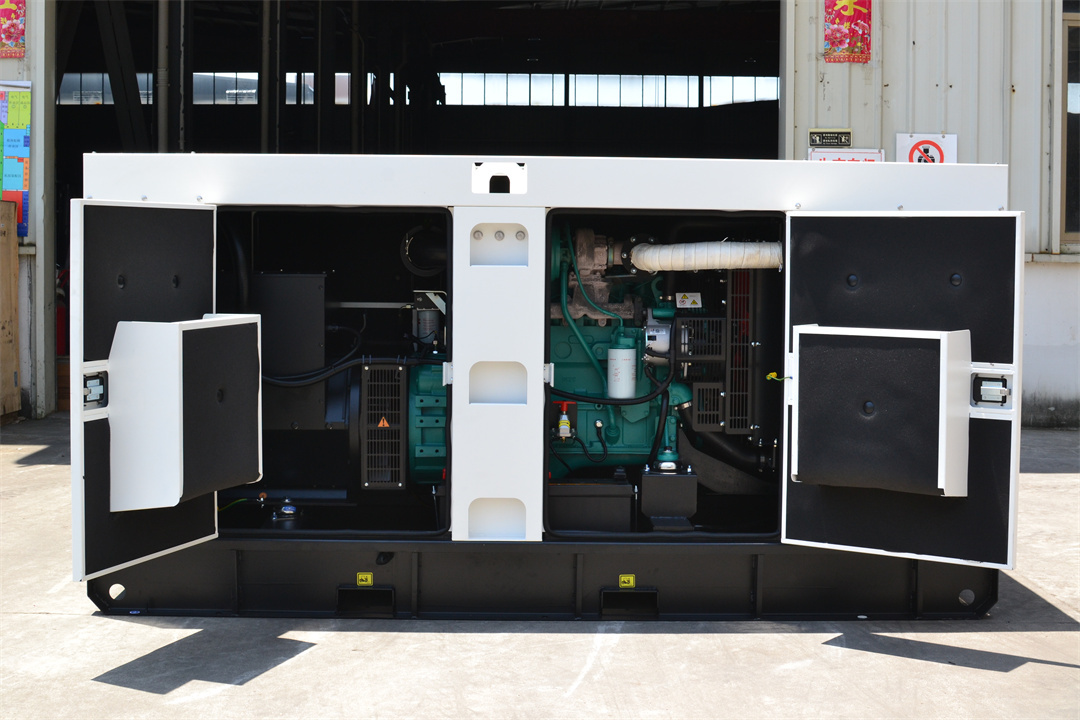

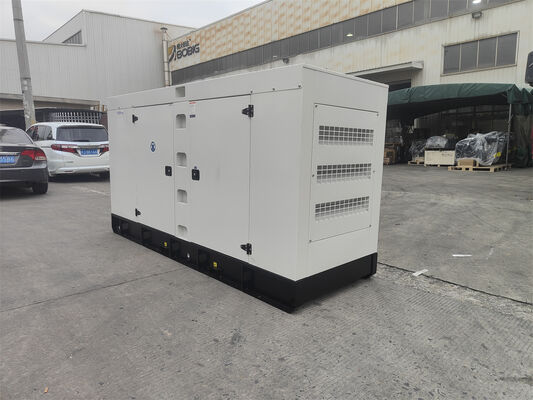

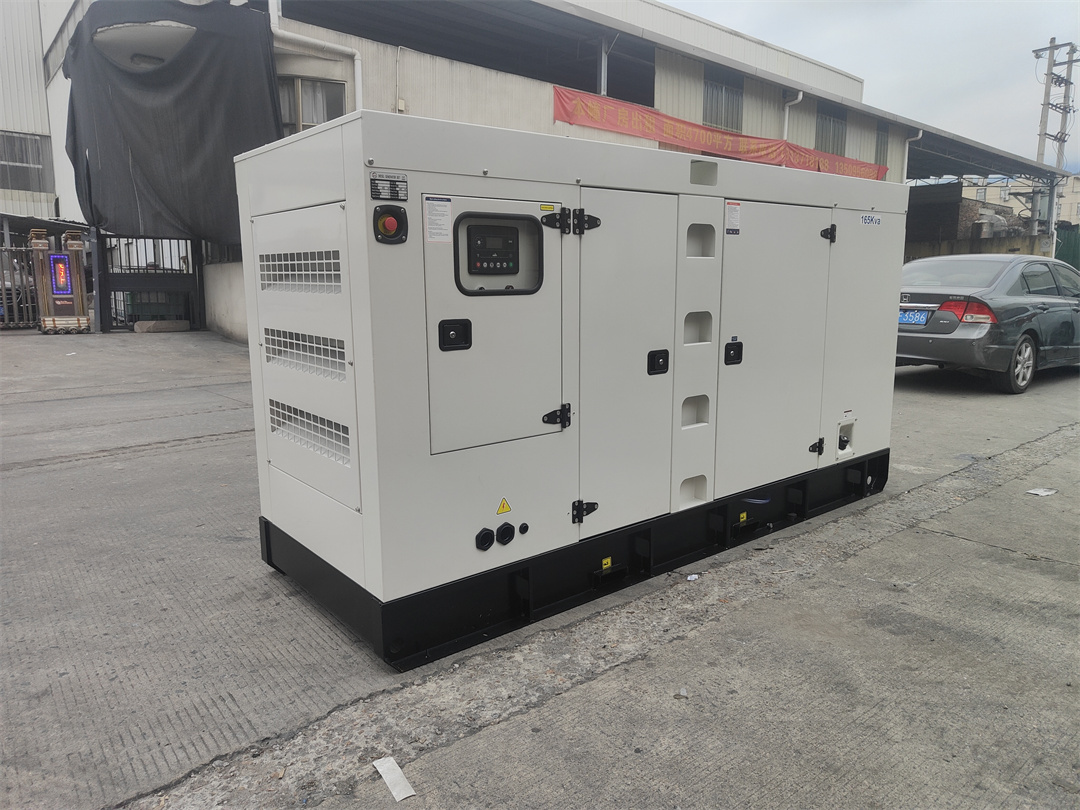

SDEC 6KTAA25-G39 520kW Diesel Generator for Construction and Mining 0 SDEC 6KTAA25-G39 520kW Diesel Generator for Construction and Mining 1
General Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 650 715
Power Rating (kW) 520 572
Frequency (Hz) 50
Engine Model 6KTAA25-G39
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load

PRP Prime Power: Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation.

ESP Standby Power: Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight
Model BSD715 (Open Type) BSD715S (Silent Type)
Length (L) mm 3900 5400
Width (W) mm 1610 2000
Height (H) mm 2500 2500
Tank Capacity (L) 1196 1196
Engine Specifications
Engine Model & Manufacturer 6KTAA25-G39 (SDEC)
Engine Type In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion Type Direct injection
Cylinder Type Wet cylinder liner
Number of Cylinders 6
Bore × Stroke 170 × 185 mm
Displacement 25.2 lit.
Compression Ratio 16 : 1
Firing Order 1-5-3-6-2-4
Fuel Injection Advance Angle Electronic control
Dry Weight 2760 kg
Dimension 2348×1181×1659mm
Rotation CCW viewed from flywheel
Fly Wheel Housing SAE 0#
Fly Wheel SAE 18# (number of teeth: 143)
Injection Pump Electronic unit pump (EUP)
Governor Electric type
Feed Pump Electric type
Injection Nozzle Multi hole type
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-354F
Alternator Rated Power 520kW/650kVA
Rated Voltage (V) 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%

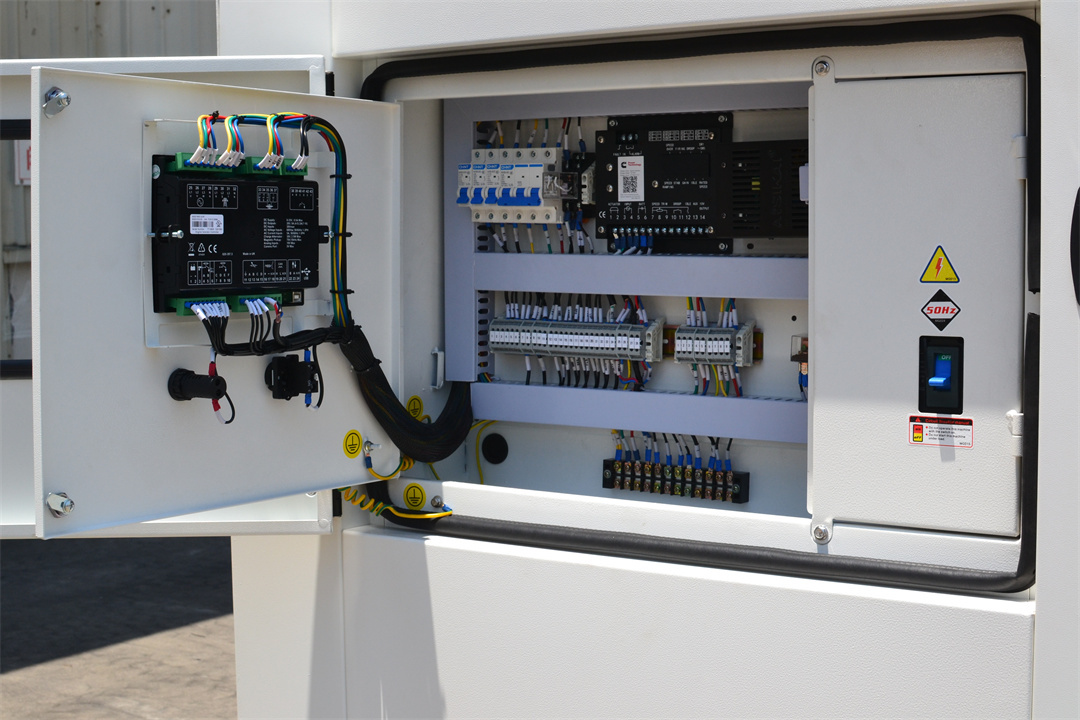

Control Panel - DSE 6120

Auto start and auto mains failure control module (Alternator frequency & CAN speed sensing)

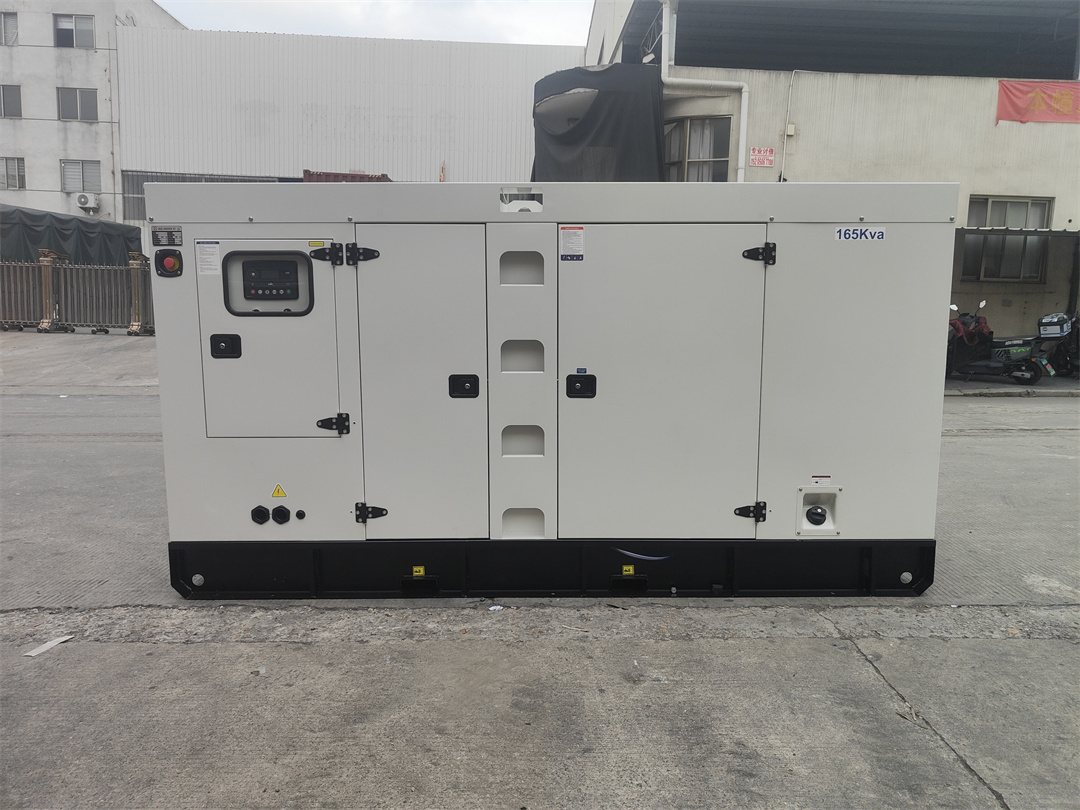

SDEC 6KTAA25-G39 520kW Diesel Generator for Construction and Mining 2
Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater
Oil Preheater
Oil manual pump		 PMG excitation
Space heater
Winding temperature measuring		 12 / 24 hour base tank
Bunded fuel tank
External fuel tank
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)		 Deepsea, ComAp, Smartgen etc. controller
Trailer
Tools with the machine
SDEC 6KTAA25-G39 520kW Diesel Generator for Construction and Mining 3 SDEC 6KTAA25-G39 520kW Diesel Generator for Construction and Mining 4
