Name: High Quality Open/Silent Type SDEC Diesel Generator 120KW/150KVA Power Supply Water Cooling
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: 6HTAA6.5-G21
Price: 2,399.00 USD
Availability: InStock

Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi

Özellikleri

Teknik Özellikler

Hız: 1500rpm

Sıklık: 50/60 Hz

Nominal güç: 5KW'dan 2000KW'a

Çıkış Türü: AC Üç Faz

Tip: Açık veya Sessiz (süper Sessiz)

Renk: İhtiyacınıza göre, Özelleştirilmiş

Vurgulamak:

SDEC silent diesel generator 120KW

water cooling diesel generator 150KVA

open type SDEC generator with warranty

Temel bilgiler

Menşe yeri: Çin

Marka adı: SDEC

Model numarası: 6HTAA6.5-G21

Ödeme & teslimat koşulları

Ambalaj bilgileri: Kontrplak

Teslim süresi: 10 iş günü

Ödeme koşulları: L/C, T/T

Yetenek temini: ayda 50 set

Fotoğraf Galerisi

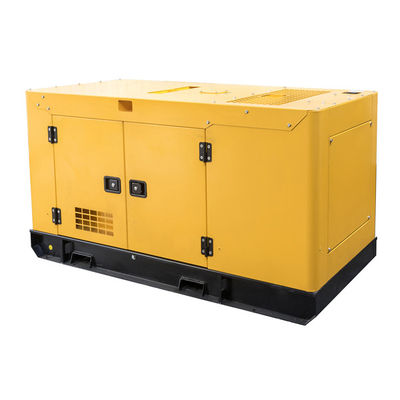

High Quality Open/Silent Type SDEC Diesel Generator 120KW/150KVA Power Supply Water Cooling

Ürün Açıklaması

High Quality Open/Silent Type SDEC Diesel Generator 120KW/150KVA Power Supply Water Cooling

Customized factory price open/silent type SDEC diesel generator providing reliable 110KW/138KVA backup power supply with water cooling system. Available in both open and silent configurations to meet diverse operational requirements.

Key Features

Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
50°C radiator with fan for optimal engine cooling during extended operation
Advanced control systems including generator set control, ATS system, remote control, and parallel operation
High-quality steel canopy construction (2MM to 6MM thickness)
High-density sound-absorbing material for effective sound insulation and fireproofing
12V/24V DC battery with charger and connecting wires
10-12 hours fuel tank with fuel indicator for continuous operation
High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
Double open doors on both sides for comprehensive engine and alternator access
Available in silent, super silent, soundproof, trailer type, and container type configurations
Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4

Technical Specifications

General Information	Prime Power	Standby Power
Rated Power (kVA)	150	165
Power Rating (kW)	120	132
Frequency (Hz)	50
Engine Model	6HTAA6.5-G22
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated Voltage (V)	400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time	≥ 8h @ 75% load

PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation
ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight

Model	BSD165 Open Type	BSD165 Silent Type
Length (L) mm	2500	3150
Width (W) mm	800	1120
Height (H) mm	1760	1700
Tank Capacity (L)	276	276

Engine Specifications

Engine Model & Manufacturer	6HTAA6.5-G22 (SDEC)
Engine Type	In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion Type	Direct injection
Cylinder Type	Dry liner
Number of Cylinders	6
Bore × Stroke	105 × 124 mm
Displacement	6.5 lit.
Compression Ratio	16 : 1
Firing Order	1-5-3-6-2-4
Fuel Injection Advance Angle	10.5°BTDC
Dry Weight	600 kg
Dimension	1343×741×1267 mm
Rotation	CCW viewed from flywheel
Fly Wheel Housing	SAE 3#
Fly Wheel	SAE 11.5# (number of teeth: 127)
Injection Pump	Longkou in-line "P" type
Governor	Electric type
Feed Pump	Mechanical type
Injection Nozzle	Multi hole type

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-274E
Alternator Rated Power	120kw/150kva
Rated Voltage (V)	230v/400v
Rated Frequency	50hz
Connecting Type	3 Phase and 4 W
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%～+20%
