1340kW 1675kVA Containerized Silent Open Diesel Generator, Cumm Engine, 3-Phase, 50/60Hz, Industrial Backup Power Support OEM

1340kW 1675kVA Containerized Silent Open Diesel Generator, Cumm Engine, 3-Phase, 50/60Hz, Industrial Backup Power Support OEM
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
gölgelik: Özelleştirilmiş
Garanti: 12 Ay/1000 Saat
Tip: Sessiz (süper Sessiz) veya Açık, Sessiz vb., Sıralı/6 Silindirli/4 Zamanlı/4 Valf/19L, Ses Geçirmez
Kontrol Paneli: LCD Dijital Ekran, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Çıkış türü: AC Tek/Üç Fazlı
Denetleyici: Derin deniz/Smartgen/vb
Başvuru: Indursty Bank vb.
Nominal Gerilim: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternatör: Maraton, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Veya Newtec, Engga
Ürün adı: Dizel Jeneratör, Jeneratör 1675kVA, CUMMIN S Dizel Jeneratör Tarafından Desteklenmektedir, Bekleme M
Renk: Müşterilerin Gereksinimi
Sıklık: 50/60HZ
Nominal Güç: 1340kW
Motor: Orijinal KİMYON S
soğutma yöntemi: Su Soğutma Sistemi
Vurgulamak:

1340kW containerized diesel generator

,

Cummins industrial backup power generator

,

silent open diesel generator 50/60Hz
Temel bilgiler
Menşe yeri: Çin
Marka adı: CUMMIN S
Sertifika: CE
Model numarası: KTA50-G15X
Ödeme & teslimat koşulları
Ambalaj bilgileri: Kabarcık sargısı
Teslim süresi: 30 gün
Yetenek temini: Ayda 500 adet
Ürün Açıklaması
1340kW 1675kVA Containerized Silent Open Diesel Generator

Industrial backup power solution featuring Cummins engine, 3-phase operation, and 50/60Hz frequency compatibility. Supports OEM customization.

Product Overview

The 1340kW 1675KVA BOBIG CUMMINS diesel generator (Model: KTA50-G15X) delivers reliable power for industrial, commercial, and residential applications. Built with Cummins engine technology for superior performance and long-term durability.

Key Features
Power Performance
  • Rated Power: 1340kW (1675KVA) for demanding industrial applications
  • Frequency: 50Hz operation suitable for most electrical equipment
  • Stable prime power output ensures continuous operation under heavy loads
Engine Excellence
  • Engine Model: KTA50-G15X Cummins engine
  • Engine Speed: 1500 RPM for smooth, consistent power supply
  • Advanced technology for high torque, fuel efficiency, and low emissions
Technical Specifications
Power Ratings
ParameterPrime PowerStandby Power
Rated Power (kVA)16751843
Power Rating (kW)13401474
Frequency (Hz)50
Engine ModelKTA50-G15X
Engine Speed (RPM)1500
Phase3
Power Factor0.8
Rated Voltage (V)400/230 (customizable)
Fuel Tank Capacity≥ 8h @ 75% load
Dimensions & Weight
ModelBC1843 (Open)BC1843S (Silent)
Length (mm)56006100
Width (mm)21502250
Height (mm)22503050
Tank Capacity (L)30823082
Engine Details
ParameterSpecification
Engine Model & ManufacturerKTA50-G15X (Cummins)
Number of Cylinders16
Cylinder ArrangementIn-line
CycleFour stroke
AspirationTurbocharged, LTA
Bore x Stroke159 x 159 mm
Displacement50.3 L
Compression Ratio13.9:1
Prime Power/Speed1491 kW/1500 rpm
Standby Power/Speed1657 kW/1500 rpm
Fuel SystemCummins PT
Cooling SystemForce Water Cooling Cycle
Total Lubrication System Capacity47.0 L
Coolant Capacity (engine only)37.0 L
Fuel Consumption @ 100% load195 g/kWh @1500 rpm
Alternator Specifications
ParameterSpecification
Alternator BrandBOBIG
ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-454D
Rated Power1340kw/1675kva
Rated Voltage230v/400v
Rated Frequency50hz
Connecting Type3 Phase and 4 W
Number of Bearings1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating
Insulation ClassH class
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%~+20%
Environmental Specifications
  • Ambient Temperature Range: +5°C to +40°C
  • Altitude: Suitable for use up to 1000m
  • Custom solutions available for different environmental conditions
Compliance & Standards

Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications ensuring quality, safety, and reliability.

Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Power for offices, shopping malls, hotels maintaining essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Customization & Services

Customization Support: We support OEM services and customization with design drawings.

Standard Equipment: All units include original power supplies and standard DSE 6120 controller. Engine, generator, and controller options available.

Warranty & Support

BOBIG products include a one-year or 1000-hour warranty (whichever comes first). Free replacement of easy-damageable spare parts during warranty period. Cost-based spare parts maintenance available after warranty expiration.

Professional after-sales service team available 24/7 for technical support, maintenance, and repairs.

Product Image

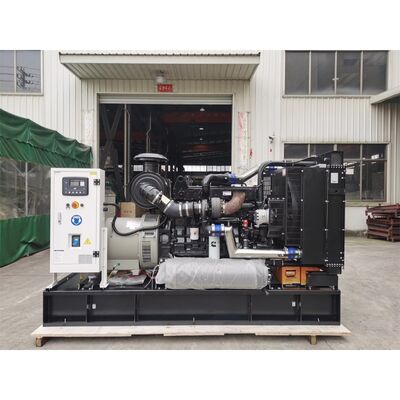

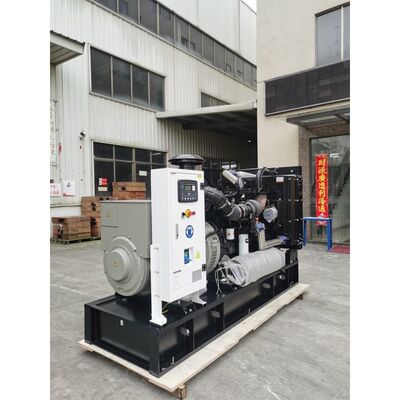

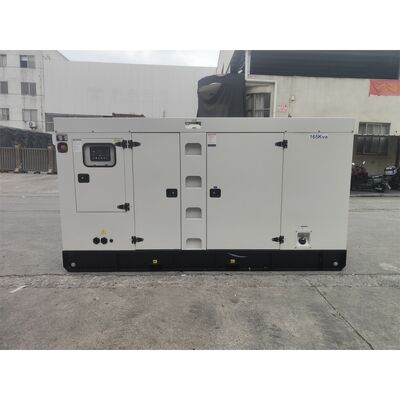

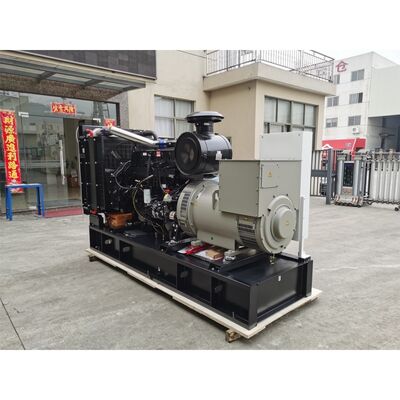

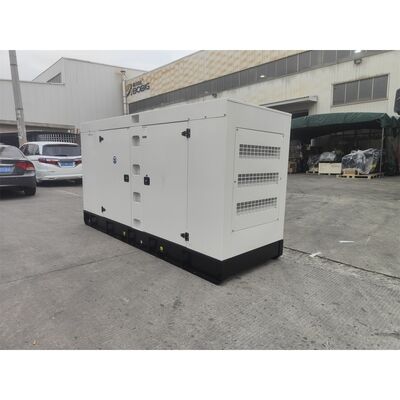

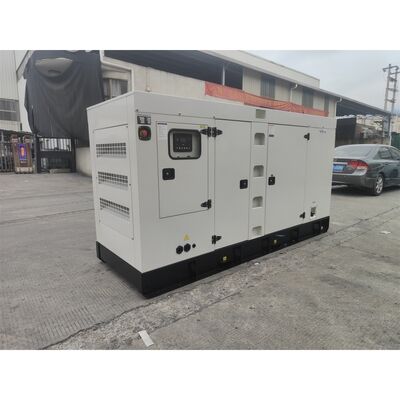

1340kW 1675kVA Diesel Generator Unit
Certifications
Product Certification 1 Product Certification 2
