Ana sayfa /Ürünler/Cummins Dizel Jeneratörler/220v 230v 380v 460kW 575KVA Waterproof Silent Diesel Generator Set Portable Open Frame diesel Generator Cummin Household

220v 230v 380v 460kW 575KVA Waterproof Silent Diesel Generator Set Portable Open Frame diesel Generator Cummin Household

220v 230v 380v 460kW 575KVA Waterproof Silent Diesel Generator Set Portable Open Frame diesel Generator Cummin Household
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
gölgelik: Özelleştirilmiş
Garanti: 12 Ay/1000 Saat
Tip: Sessiz (süper Sessiz) veya Açık, Sessiz vb., Sıralı/6 Silindirli/4 Zamanlı/4 Valf/19L, Ses Geçirmez
Kontrol Paneli: LCD Dijital Ekran, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Çıkış türü: AC Tek/Üç Fazlı
Denetleyici: Derin deniz/Smartgen/vb
Başvuru: Indursty Bank vb.
Nominal Gerilim: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternatör: Maraton, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Veya Newtec, Engga
Ürün adı: Dizel Jeneratör, Jeneratör 575KVA, CUMMIN S Dizel Jeneratör Tarafından Desteklenmektedir, Beklemede
Renk: Müşterilerin Gereksinimi
Sıklık: 50/60HZ
Nominal Güç: 460kw
Motor: Orijinal KİMYON S
soğutma yöntemi: Su Soğutma Sistemi
Vurgulamak:

220v waterproof diesel generator

,

460kW silent diesel generator

,

portable Cummins diesel generator
Temel bilgiler
Menşe yeri: Çin
Marka adı: CUMMIN S
Sertifika: CE
Model numarası: KTA19-G8
Ödeme & teslimat koşulları
Ambalaj bilgileri: Kabarcık sargısı
Teslim süresi: 30 gün
Yetenek temini: Ayda 500 adet
Ürün Açıklaması

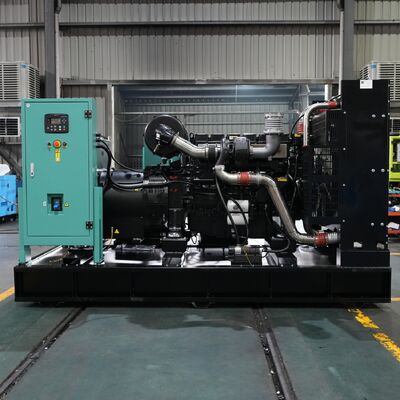

460kW 575KVA BOBIG CUMMIN S Diesel Generator Set
Model: KTA19-G8 - Reliable Power Solution for Industrial, Commercial, and Residential Applications
Product Overview
Our 460kW 575KVA BOBIG CUMMIN S diesel generator (Model: KTA19-G8) delivers reliable power performance backed by the renowned CUMMIN S brand, offering high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 460kW (575KVA) for various industrial, commercial, and residential applications
  • Frequency: 50Hz standard frequency suitable for most electrical equipment
  • Stable prime power output ensures continuous operation under heavy loads
Engine Excellence
  • Engine Model: KTA19-G8 CUMMIN S engine with advanced technology
  • Engine Speed: 1500 RPM for smooth, consistent power supply
  • High torque, fuel efficiency, and low emissions
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 563 619
Power Rating (kW) 450 495
Frequency (Hz) 50
Engine Model KTA19-G8E
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Dimensions and Weight
Model BC633 (Open Type) BC633S (Silent Type)
Length (mm) 3600 5000
Width (mm) 1500 2000
Height (mm) 2460 2400
Tank Capacity (L) 1058 1058
Engine Specifications
Engine Model & Manufacturer KTA19-G8E (Cummin s)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle Four Stroke
Aspiration Turbocharged, Aftercooled
Bore x Stroke 159 x 159 mm
Displacement 19 L
Compression Ratio 13.9:1
Fuel System Cummin s PT
Cooling System Force Water Cooling Cycle
Alternator Specifications
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-354DS
Alternator Rated Power 450kw/563kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Protection Grade IP23
Insulation Class H class
Environmental Adaptability
  • Ambient Temperature: +5°C to +40°C operating range
  • Altitude: Suitable for use up to 1000m
  • Customized solutions available for different environmental conditions
Certifications and Standards
Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications ensuring quality, safety, and reliability.
Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Customization and Services
  • Customization and OEM services available with design drawings
  • Standard DSE 6120 controller included (engine, generator, and controller options available)
  • One-year or 1000-hour warranty (whichever comes first)
  • Professional after-sales service team available 24/7
Packaging and Shipping
Plywood case packaging with 10-15 working days delivery after receiving customer deposit.
BOBIG Diesel Generator Set Product Certification Quality Certification
