Ana sayfa /Ürünler/Cummins Dizel Jeneratörler/352kW 440KVA Open Frame Silent Generator diesel Set Industrial Professional Auto Start diesel Generator Set ATS Cum min

352kW 440KVA Open Frame Silent Generator diesel Set Industrial Professional Auto Start diesel Generator Set ATS Cum min

352kW 440KVA Open Frame Silent Generator diesel Set Industrial Professional Auto Start diesel Generator Set ATS Cum min
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
gölgelik: Özelleştirilmiş
Garanti: 12 Ay/1000 Saat
tip: Sessiz (süper Sessiz) veya Açık, Sessiz vb., Sıralı/6 Silindirli/4 Zamanlı/4 Valf/19L, Ses Geçirmez
Kontrol Paneli: LCD Dijital Ekran, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Çıkış türü: AC Tek/Üç Fazlı
Denetleyici: Derin deniz/Smartgen/vb
Başvuru: Indursty Bank vb.
Nominal gerilim: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternatör: Maraton, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Veya Newtec, Engga
Ürün Adı: Dizel Jeneratör, Jeneratör 440KVA, CUMMIN S Dizel Jeneratör Tarafından Desteklenmektedir, Beklemede
Renk: Müşterilerin Gereksinimi
Sıklık: 50/60HZ
Nominal Güç: 352kW
Motor: Orijinal KİMYON S
soğutma yöntemi: Su Soğutma Sistemi
Vurgulamak:

440KVA diesel generator set

,

industrial silent generator diesel

,

auto start Cummins generator set
Temel bilgiler
Menşe yeri: Çin
Marka adı: CUMMIN S
Sertifika: CE
Model numarası: 6ztaa13-g2
Ödeme & teslimat koşulları
Ambalaj bilgileri: Kabarcık sargısı
Teslim süresi: 30 gün
Yetenek temini: Ayda 500 adet
Ürün Açıklaması
352kW 440KVA Open Frame Silent Generator Diesel Set
Our 352kW 440KVA BOBIG CUMMIN S diesel generator (Model: 6ZTAA13-G2) is designed to provide reliable power for industrial, commercial, and residential applications. Backed by the renowned CUMMIN S brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
  • Rated Power: 352kW (440KVA) for various industrial applications
  • Stable prime power output ensuring continuous operation under heavy loads
  • Standard frequency: 50Hz suitable for most electrical equipment
Engine Excellence
  • Engine Model: 6ZTAA13-G2 CUMMIN S engine
  • Advanced technology with high torque, fuel efficiency, and low emissions
  • Engine Speed: 1500 RPM for smooth and consistent power supply
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 440 484
Power Rating (kW) 352 387
Frequency (Hz) 50
Engine Model 6ZTAA13-G2
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Power Ratings Explanation
PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97. Includes 10% overload capability for 1 hour within 12-hour operation.
ESP (Standby Power): Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available.
Dimensions and Weight
Model BC484 (Open Type) BC484S (Silent Type)
Length (mm) 3350 4300
Width (mm) 1300 1600
Height (mm) 2460 2430
Tank Capacity (L) 810 810
Engine Specifications
Engine Model & Manufacturer 6ZTAA13-G2 (Cummins)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle Four Stroke
Aspiration Turbocharged & Charge Air Cooled
Bore x Stroke 130 x 163 mm
Displacement 13.0 L
Compression Ratio 17.0:1
Fuel System BYC PD/GAC
Cooling System Force Water Cooling Cycle
Alternator Specifications
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW354C
Rated Power 352kW/440kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Protection Grade IP23
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Customization & Options
We support customization and OEM services with design drawings. All units come with standard DSE 6120 controller. Engine, generator, and controller options are available.
Applications
  • Industrial Use: Backup power for factories ensuring continuous production during outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Environmental Specifications
Ambient Temperature: +5°C to +40°C
Altitude: Suitable for use up to 1000m (custom solutions available for different conditions)
Compliance Standards
ISO 8528-5:2018, GB/T2820.5-2009, CE certified for quality, safety, and reliability
Warranty & Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. Includes free replacement of easy-damageable spare parts due to production or material quality issues. Professional after-sales service available 24/7.
Product Image

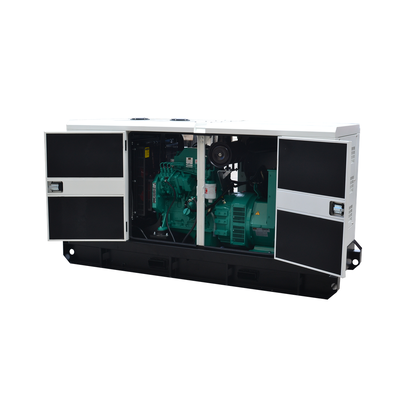

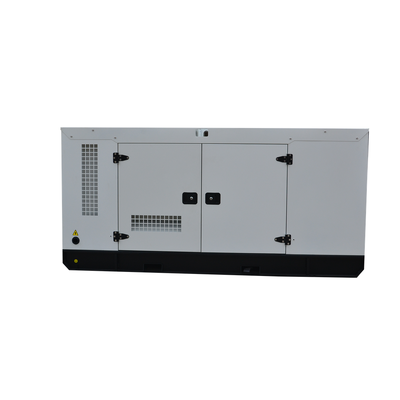

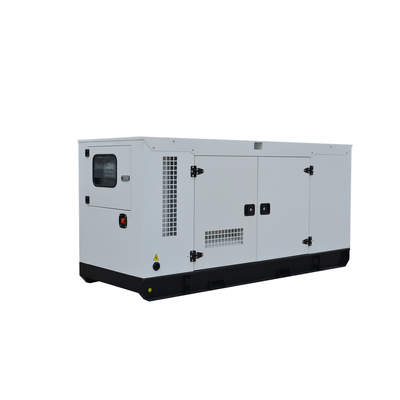

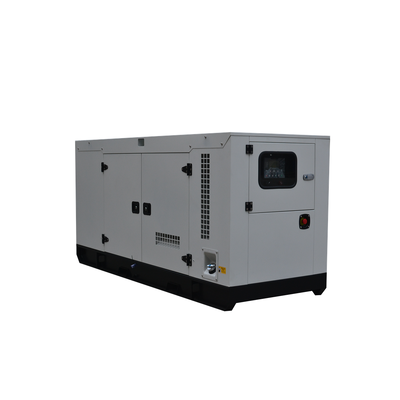

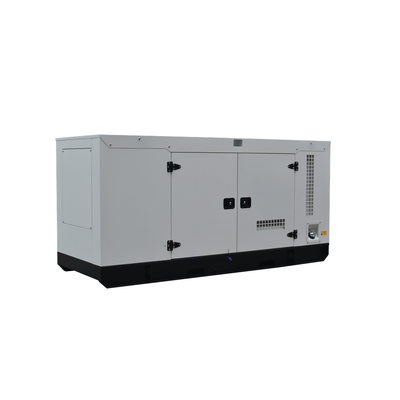

BOBIG 352kW 440KVA Diesel Generator Set
Certifications
BOBIG Quality Certification
BOBIG Industry Certification
