3phase/Single Phase diesel Generator diesel for Sale Generator diesel 300kW 375KVA Silent Professional diesel Generators

3phase/Single Phase diesel Generator diesel for Sale  Generator diesel 300kW 375KVA Silent Professional diesel Generators
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
gölgelik: Özelleştirilmiş
Garanti: 12 Ay/1000 Saat
tip: Sessiz (süper Sessiz) veya Açık, Sessiz vb., Sıralı/6 Silindirli/4 Zamanlı/4 Valf/19L, Ses Geçirmez
Kontrol Paneli: LCD Dijital Ekran, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Çıkış türü: AC Tek/Üç Fazlı
Denetleyici: Derin deniz/Smartgen/vb
Başvuru: Indursty Bank vb.
Nominal gerilim: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternatör: Maraton, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Veya Newtec, Engga
Ürün Adı: Dizel Jeneratör, Jeneratör 300kW, CUMMIN S Dizel Jeneratör Tarafından Desteklenmektedir, Beklemede K
Renk: Müşterilerin Gereksinimi
Sıklık: 50/60HZ
Nominal Güç: 300KW
Motor: Orijinal KİMYON S
soğutma yöntemi: Su Soğutma Sistemi
Vurgulamak:

300kW silent diesel generator

,

375KVA professional diesel generator

,

3 phase Cummins diesel generator

Temel bilgiler
Menşe yeri: Çin
Marka adı: CUMMIN S
Sertifika: CE
Model numarası: 6ZTAA13-G3
Ödeme & teslimat koşulları
Ambalaj bilgileri: Kabarcık sargısı
Teslim süresi: 30 gün
Yetenek temini: Ayda 500 adet
Ürün Açıklaması

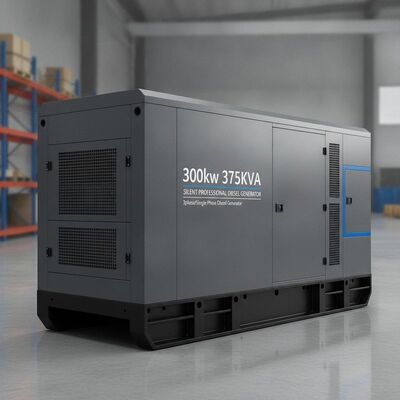

300kW 375KVA BOBIG CUMMIN S Diesel Generator (Model: 6ZTAA13-G3)

Our 300kW 375KVA BOBIG CUMMIN S diesel generator (Model: 6ZTAA13-G3) is engineered to deliver reliable power for diverse industrial, commercial, and residential applications. Backed by the trusted CUMMIN S brand, it ensures high-quality performance and long-term durability.

Key Features
Power Performance
  • Rated Power: 300kW (375KVA) for stable, efficient operation under heavy loads
  • Frequency: 50Hz standard, compatible with most electrical equipment
Engine Excellence
  • Engine Model: 6ZTAA13-G3 CUMMIN S engine with advanced technology
  • Engine Speed: 1500 RPM for smooth, consistent power with minimal wear
Technical Specifications
General InformationPrime PowerStandby Power
Rated Power (kVA)375413
Power Rating (kW)300330
Frequency (Hz)50
Engine Model6ZTAA13-G3
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated Voltage (V)400/230 (customizable)
Fuel Tank Capacity Operating Time≥ 8h @ 75% load
Dimensions and Weight
ModelBC413 (Open Type)BC413S (Silent Type)
Length (mm)33504300
Width (mm)13001600
Height (mm)24602430
Tank Capacity (L)690690
Engine Specifications
Engine Model & Manufacturer6ZTAA13-G3 (Cummins)
Number of Cylinders6
Cylinder ArrangementIn-line
CycleFour Stroke
AspirationTurbocharged & Charge Air Cooled
Bore x Stroke130 x 163 mm
Displacement13.0 L
Compression Ratio17.0:1
Prime Power/Speed340 kW/1500 rpm
Standby Power/Speed378 kW/1500 rpm
Fuel SystemBYC PD/GAC
Cooling SystemForce Water Cooling Cycle
Total Lubrication System Capacity23.1 L
Coolant Capacity (engine only)13 L
Fuel Consumption @ 100% Load189 g/kWh @1500 rpm
Alternator Specifications
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-314F
Alternator Rated Power300kW/375kVA
Rated Voltage (V)230V/400V
Rated Frequency50Hz
Connecting Type3 Phase and 4 W
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Voltage Regulation, Steady State≤±1%
Customization and Options

We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with the standard DSE 6120 controller. Engine, generator, and controller options are available.

BOBIG diesel generator controller and components
Certifications

Our generator complies with international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification.

BOBIG generator quality certifications BOBIG generator compliance certifications
Applications
  • Industrial Use: Backup power for factories to ensure continuous production during outages
  • Commercial Buildings: Power for office buildings, shopping malls, and hotels to maintain essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service

BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During warranty, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. After expiration, we offer cost-based spare parts maintenance with 24/7 technical support.

Why Choose BOBIG
  • Brand Reputation: Cummins is a trusted brand with long history of quality products
  • Quality Assurance: Manufactured to international standards with rigorous inspections
  • Customization Options: Tailored solutions based on your specific requirements
