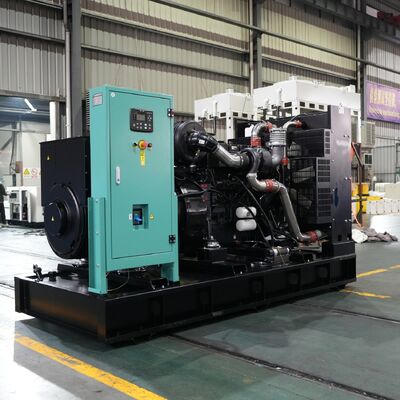

Our 150kW 188KVA BOBIG FAWDE diesel generator (Model: CA6DL1-24D) is designed to provide reliable power for a wide range of applications. Backed by the FAWDE brand, it offers high-quality performance and long-term durability.
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 188 | 206 |
| Power Rating (kW) | 150 | 165 |
| Frequency (Hz) | 50 | |
| Engine Model | CA6DL1-24D | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
| Engine Specifications | |
|---|---|
| Engine Model & Manufacturer | CA6DL1-24D (FAWDE) |
| Number of Cylinders | 6 |
| Cylinder Arrangement | In-line |
| Cycle | 4 stroke |
| Aspiration | Turbocharged & Intercooled |
| Cooling System | Water-cooled |
| Bore | 110 mm |
| Stroke | 135 mm |
| Compression Ratio | 17.5:1 |
| Displacement | 7.7 L |
| Dry Engine Weight | 780 kg |
| Alternator Specifications | |
|---|---|
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-274G |
| Alternator Rated Power | 150kw/188kva |
| Rated Voltage (V) | 230v/400v |
| Rated Frequency | 50hz |
| Protection Grade | IP23 |
| Insulation Class | H class |
| Dimension and Weight | Open Type (BFA206) | Silent Type (BFA206S) |
|---|---|---|
| Length (mm) | 2550 | 3250 |
| Width (mm) | 1100 | 1120 |
| Height (mm) | 1760 | 1540 |
| Tank Capacity (L) | 345 | 345 |
BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During the warranty period, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. Professional after-sales service team available 24/7 for technical support, maintenance, and repair services.
Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.
We are an electrical machinery manufacturer integrating technological research, production, and sales. With a total factory area of 10,000 square meters and 160 employees (including 20 technicians), we specialize in gasoline generators, diesel generators (5-2000kva), gas generators, pumps, and related products. Our company holds ISO9000 Quality System Certification and maintains advanced testing equipment including CAD systems, automated assembly equipment, and digital testing systems.
