Customizable Perkins 200kW 250KVA Silent Diesel Generator Set -1206A - E70TTAG3 with Stamford Alternator

Customizable Perkins 200kW 250KVA Silent Diesel Generator Set -1206A - E70TTAG3 with Stamford Alternator
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
gölgelik: Özelleştirilmiş
Garanti: 12 Ay/1000 Saat
Tip: Sessiz (süper Sessiz) veya Açık, Sessiz vb., Sıralı/6 Silindirli/4 Zamanlı/4 Valf/19L, Ses Geçirmez
Kontrol Paneli: LCD Dijital Ekran, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Çıkış türü: AC Tek/Üç Fazlı
Denetleyici: Derin deniz/Smartgen/vb
Başvuru: Indursty Bank vb.
Nominal Gerilim: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternatör: Maraton, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford Veya Newtec, Engga
Ürün adı: Ev kullanımı, endüstriyel kullanım, hastane kullanımı ve inşaat sahaları için özelleştirilebilir PER
Renk: Müşterilerin Gereksinimi
Sıklık: 50/60 Hz
Nominal Güç: 250KVA
Motor: Orijinal Perkins
soğutma yöntemi: Su Soğutma Sistemi
Vurgulamak:

Perkins 200kW silent diesel generator

,

Perkins 250KVA generator with Stamford alternator

,

Customizable Perkins diesel generator set
Temel bilgiler
Menşe yeri: Çin
Marka adı: PERKINS
Sertifika: CE
Model numarası: 1206A - E70TTAG3
Ödeme & teslimat koşulları
Ambalaj bilgileri: kontrplak
Teslim süresi: 10 metre
Yetenek temini: Ayda 500 adet
Ürün Açıklaması
Customizable Perkins 200kW 250KVA Silent Diesel Generator Set - 1206A - E70TTAG3 with Stamford Alternator
Product Overview

Our 200kW 250KVA BOBIG PERKINS diesel generator (Model: 1206A - E70TTAG3) is engineered to deliver reliable power for diverse applications. Backed by the renowned PERKINS brand, it offers superior performance and long-term durability.

Key Features
Power Performance

Rated Power: 200kW (250KVA) for industrial, commercial, and residential applications

Frequency: 50Hz standard operation

Engine Excellence

Engine Model: 1206A - E70TTAG3 PERKINS engine

Engine Speed: 1500 RPM for smooth, consistent power

Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 250 275
Power Rating (kW) 200 220
Frequency (Hz) 50
Engine Model 1206A-E70TTAG3
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity ≥ 8h @ 75% load
Dimensions and Weight
Model BP275 BP275S
Type Open Silent
Length (mm) 2600 3400
Width (mm) 1000 1250
Height (mm) 1850 1750
Tank Capacity (L) 460 460
Engine Specifications
Engine Model & Manufacturer 1206A-E70TTAG3 (PERKINS)
Number of Cylinders 6
Cylinder Arrangement Vertical Inline
Cycle Four Stroke
Aspiration Twin Turbocharged, Aftercooled
Bore x Stroke 105 x 135 mm
Cubic Capacity 7.01 L
Compression Ratio 15.8:1
Prime Power/Speed 217.4 kW/1500 rpm
Standby Power/Speed 239.1 kW/1500 rpm
Alternator Details
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274K
Alternator Rated Power 200kw/250kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Protection Grade IP23
Insulation Class H Class
Customization & OEM Services

We support complete customization and OEM services with design drawings. All units feature original power supplies and standard DSE 6120 controller (engine, generator, and controller are optional).

Applications
  • Industrial Use: Backup power for factories ensuring continuous production
  • Commercial Buildings: Power for offices, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable grids
Warranty & Service

BOBIG products include a one-year or 1000-hour warranty (whichever comes first). We provide free replacement of defective parts during warranty and ongoing support thereafter.

Why Choose Us
  • Brand Reputation: Trusted PERKINS engine technology
  • Quality Assurance: Rigorous international standard compliance
  • Customization Options: Tailored solutions for specific requirements

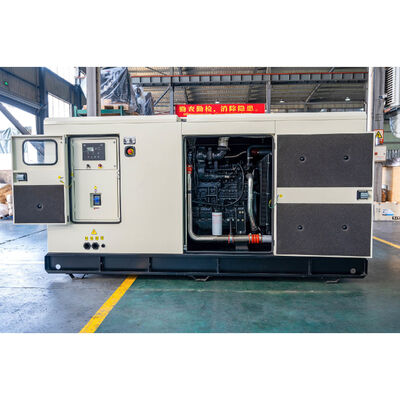

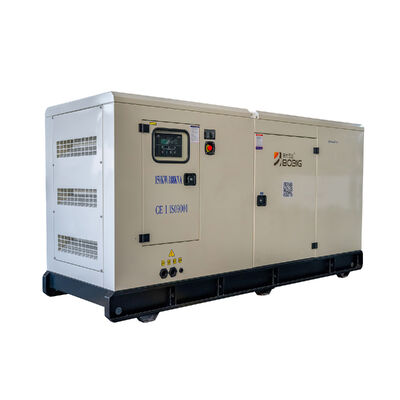

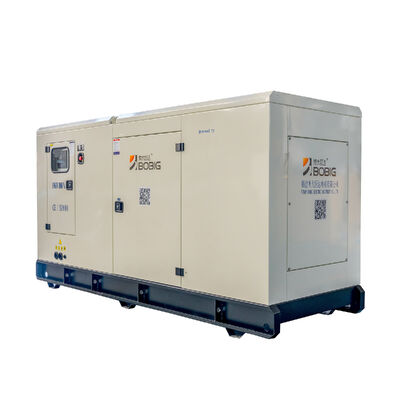

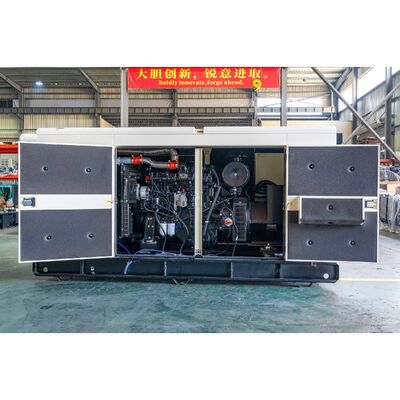

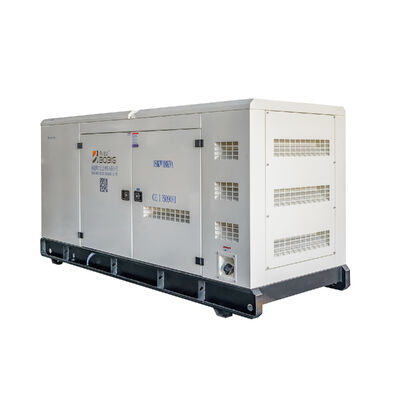

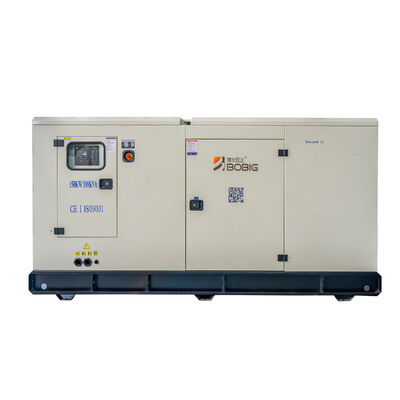

Product Image
Customizable Perkins 200kW 250KVA Silent Diesel Generator Set -1206A - E70TTAG3 with Stamford Alternator 0
Certifications
Customizable Perkins 200kW 250KVA Silent Diesel Generator Set -1206A - E70TTAG3 with Stamford Alternator 1 Customizable Perkins 200kW 250KVA Silent Diesel Generator Set -1206A - E70TTAG3 with Stamford Alternator 2
