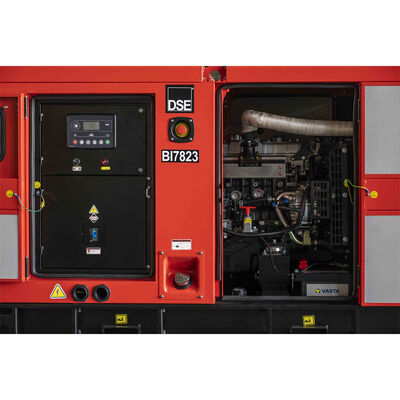

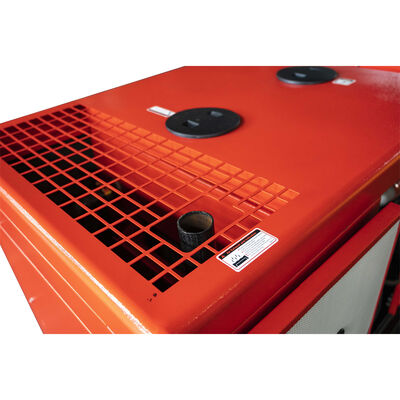

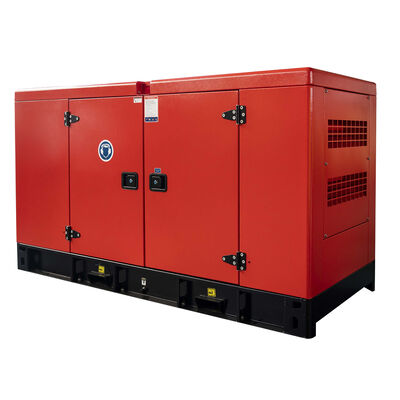

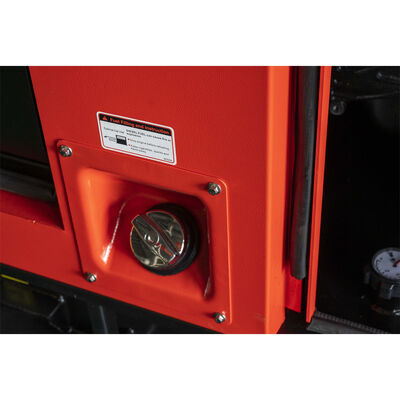

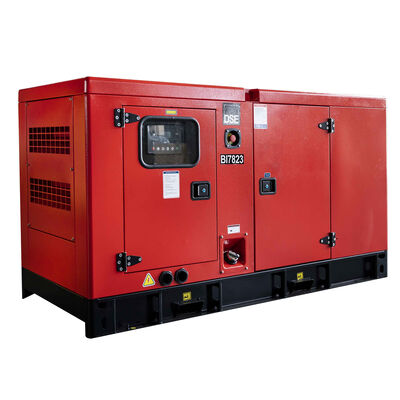

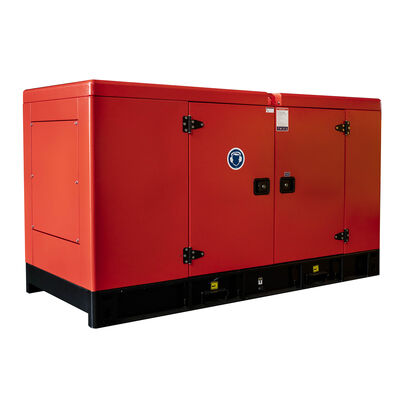

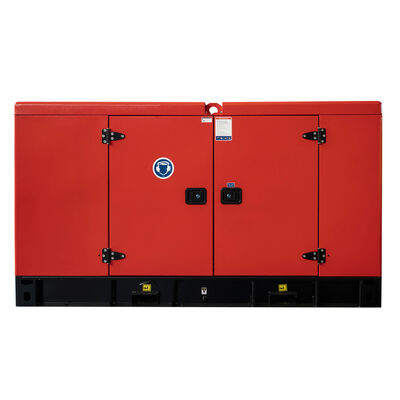

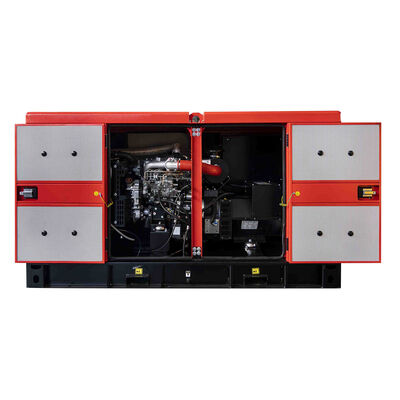

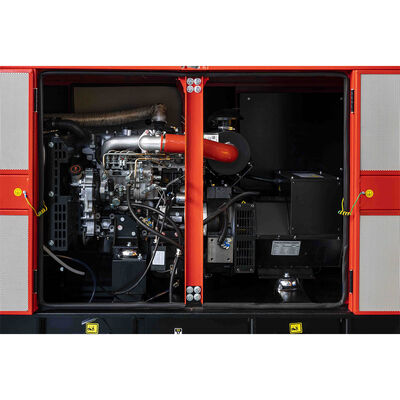

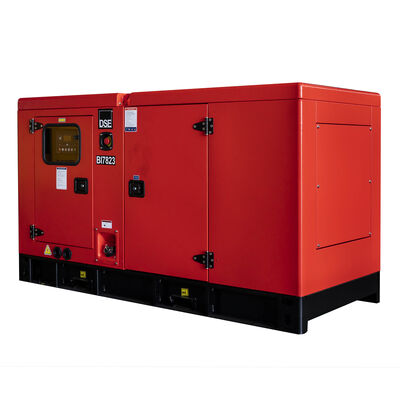

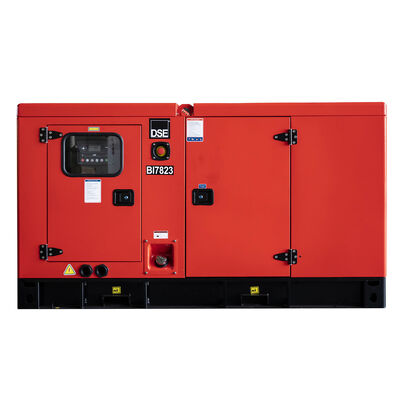

24kW Silent Diesel Generator with Digital Panel Water Cooled System Auto Start High Quality and Factory Cheap Price 30KVA

24kW Silent Diesel Generator with Digital Panel Water Cooled System Auto Start High Quality and Factory Cheap Price 30KVA
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
gölgelik: Özelleştirilmiş
Garanti: 12 Ay/1000 Saat
Tip: Sessiz (süper Sessiz) veya Açık, Sessiz, vb., Sıralı/6 Silindirli/4 Zamanlı/4 Valfli/19L, Ses Geçirm
Kontrol Paneli: LCD Dijital Ekran, Derin Deniz, ComAp, Derin Deniz / ComAp / Harsen / Smartgen 6110, Smartgen
Çıkış Türü: AC Tek/Üç Faz
Denetleyici: Derin deniz/Smartgen/vb.
Başvuru: Indursty bankası vb.
Nominal Gerilim: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternatör: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford veya Newtec, Engga
Ürün Adı: Dizel Jeneratör, Jeneratör 24kW, FAWDE Dizel Jeneratör ile Güçlendirilmiş, Beklemede Kullanım Gücü D
Renk: Müşterilerin Gereksinimi
Sıklık: 50/60Hz
Nominal Güç: 30kva
Motor: Orijinal Fawde
Soğutma Yöntemi: Su Soğutma Sistemi
Vurgulamak:

24kW silent diesel generator

,

water cooled diesel generator

,

30KVA auto start generator
Temel bilgiler
Menşe yeri: Çin
Marka adı: FAWDE
Sertifika: CE
Model numarası: 4DW92 - 39D
Ödeme & teslimat koşulları
Ambalaj bilgileri: Kontrplak
Teslim süresi: 30 gün
Yetenek temini: Ayda 500 pc
Ürün Açıklaması
24kW Silent Diesel Generator with Digital Panel Water Cooled System
Product Overview
Our 24kW 30KVA BOBIG FAWDE diesel generator (Model: 4DW92-39D) is designed to provide reliable power for a wide range of applications. Backed by the FAWDE brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
Rated Power: 24kW (30KVA) with stable and efficient prime power output ensuring continuous operation even under heavy loads. Frequency: 50Hz standard frequency suitable for most electrical equipment.
Engine Excellence
Powered by the 4DW92-39D FAWDE engine with high torque, fuel efficiency, and low emissions. Running at 1500 RPM for smooth and consistent power supply while minimizing wear and tear.
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 30 33
Power Rating (kW) 24 26
Frequency (Hz) 50
Engine Model 4DW92-39D-HMS20W
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Engine Specifications
Engine Model & Manufacturer 4DW92-39D-HMS20W (FAWDE)
Engine Model 4DW92-39D
No. of Cylinders 4
Cylinder Arrangement In-line
Cycle 4 stroke
Aspiration Turbocharged
Cooling System Water-cooled
Bore 90 mm
Stroke 100 mm
Compression Ratio 17:1
Displacement 2.54 L
Dry Engine Weight 250 kg
Dimension (L*W*H) 700*590*680
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-184G
Alternator Rated Power 24kw/30kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Applications
  • Industrial Use: Backup power source for factories ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services like lighting, elevators, and security systems
  • Residential Areas: Reliable power for communities in areas with unstable power grids
Why Choose Us
  • Brand Reputation: Trusted brand with long history of producing high-quality products
  • Quality Assurance: Manufactured in strict accordance with international standards with rigorous quality inspections
  • Customization Options: Customized solutions based on your specific requirements
Warranty & Service
BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free easy-damageable spare parts caused by production or raw material quality issues.
