Factory Price YANMAR 3TNV70-GGE 5kw 6kva Diesel Generator for Sale

1
MOQ
USD 300-860
fiyat
Factory Price YANMAR 3TNV70-GGE 5kw 6kva Diesel Generator for Sale
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Vurgulamak:

Yanmar 3TNV70 diesel generator

,

5kw Yanmar diesel generator

,

6kva diesel generator with warranty
Temel bilgiler
Menşe yeri: Çin
Marka adı: YANMAR
Model numarası: YANMAR 3TNV70-GGE
Ödeme & teslimat koşulları
Ambalaj bilgileri: 175*85*103cm
Teslim süresi: 30 İŞ GÜNÜ
Ödeme koşulları: L/C, T/T, D/P
Yetenek temini: Ayda 500 pc
Ürün Açıklaması

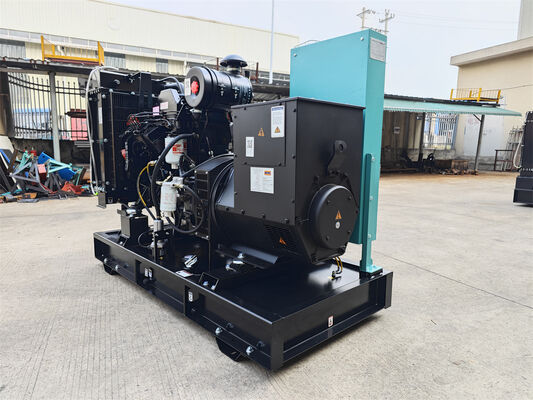

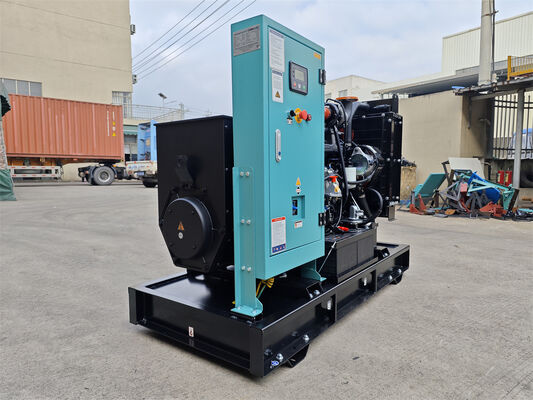

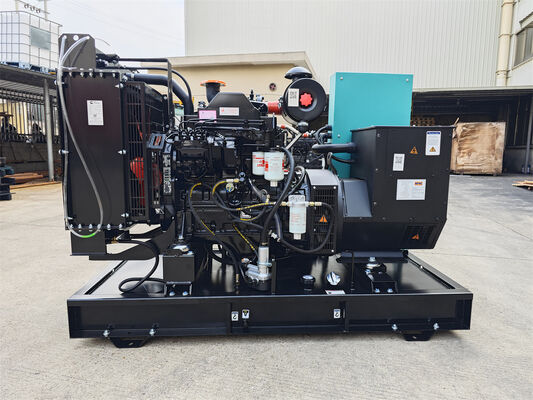

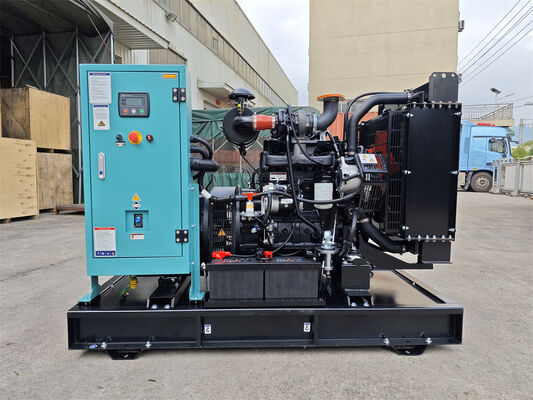

Factory Price YANMAR 3TNV70-GGE 5kw 6kva Diesel Generator

YANMAR Diesel Generator Set

Our BOBIG 3TNV70-GGE Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned BOBIG engine, this 5kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.

Factory Price YANMAR 3TNV70-GGE 5kw 6kva Diesel Generator for Sale 0 Factory Price YANMAR 3TNV70-GGE 5kw 6kva Diesel Generator for Sale 1
General Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 6 7
Power Rating (kW) 5 6
Frequency (Hz) 50
Engine Model 3TNV70-GGE
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load

PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation.

ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight
Model BYN7 (Open Type) BYN7S (Silent Type)
Length (L) mm 1400 1750
Width (W) mm 610 850
Height (H) mm 1130 1030
Tank Capacity (L) 12 12
Engine Specifications
Parameter Specification
Engine Model & Manufacturer 3TNV70-GGE (YANMAR)
Engine Type 4 cycle, Inline, Water-cooled Diesel
No. of Cylinders - Bore × Stroke (mm) 3 - φ70 × 74
Combustion System Indirect Injection
Compression Ratio 23.4
Displacement (liter) 0.854
Rated Output kW(PS)/min⁻¹ 6.7(9.1)/8(10.9) at 1500/1800
Continuous Rating kW(PS)/min⁻¹ 6.1(8.3)/7.3(9.9) at 1500/1800
Specific Fuel Consumption 272 g/kW-h (200 g/PS-h) at rated output
Engine Dry Weight (kg) approx. 115
Alternator Specifications
Parameter Specification
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-164A
Alternator Rated Power 5kw/6kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 Wire
Protection Grade IP23
Insulation Class H class
Voltage Regulation, Steady State ≤±1%
Control Panel - DSE 6120
Factory Price YANMAR 3TNV70-GGE 5kw 6kva Diesel Generator for Sale 2
Key Benefits
  • Automatically transfers between mains (utility) and generator for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
Key Features
  • 4-line back-lit LCD text display with multiple display languages
  • Five-key menu navigation with LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility and internal PLC editor
  • 3-phase generator sensing and protection
  • Automatic load transfer control
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Over current protection and kW overload alarm
  • Breaker control via fascia buttons
  • Real time clock and engine run-time scheduler
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater
Oil Preheater
Oil manual pump		 PMG excitation
Space heater
Winding temperature measuring		 12/24 hour base tank
Bunded fuel tank
External fuel tank
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)		 Deepsea, ComAp, Smartgen etc. controller
Trailer
Tools with the machine
Factory Price YANMAR 3TNV70-GGE 5kw 6kva Diesel Generator for Sale 3 Factory Price YANMAR 3TNV70-GGE 5kw 6kva Diesel Generator for Sale 4
