180kW Silent Diesel Generator with Digital Panel Water Cooling System Auto Start High Quality and Factory Cheap Price 225KVA

180kW Silent Diesel Generator with Digital Panel Water Cooling System Auto Start High Quality and Factory Cheap Price 225KVA
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
gölgelik: Özelleştirilmiş
Garanti: 12 Ay/1000 Saat
Tip: Sessiz (süper Sessiz) veya Açık, Sessiz, vb., Sıralı/6 Silindirli/4 Zamanlı/4 Valfli/19L, Ses Geçirm
Kontrol Paneli: LCD Dijital Ekran, Derin Deniz, ComAp, Derin Deniz / ComAp / Harsen / Smartgen 6110, Smartgen
Çıkış Türü: AC Tek/Üç Faz
Denetleyici: Derin deniz/Smartgen/vb.
Uygulama: Indursty bankası vb.
Nominal Gerilim: 400/230V, 110-480V, 220V / 380V, 110V / 240V, 380V
Alternatör: Marathon, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford veya Newtec, Engga
Ürün Adı: Dizel Jeneratör, Jeneratör 180kW, FAWDE Dizel Jeneratör Tarafından Desteklenmektedir, Beklemede Kull
Renk: Müşterilerin Gereksinimi
Sıklık: 50/60 Hz
Nominal güç: 225kva
Motor: Orijinal Fawde
Soğutma Yöntemi: Su Soğutma Sistemi
Vurgulamak:

180kW silent diesel generator

,

water cooling diesel generator

,

auto start diesel generator
Temel bilgiler
Menşe yeri: Çin
Marka adı: FAWDE
Sertifika: CE
Model numarası: CA6DL2-27D
Ödeme & teslimat koşulları
Ambalaj bilgileri: Kontrplak
Teslim süresi: 30 gün
Yetenek temini: Ayda 500 pc
Ürün Açıklaması

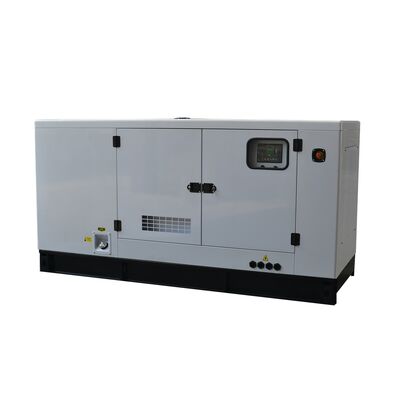

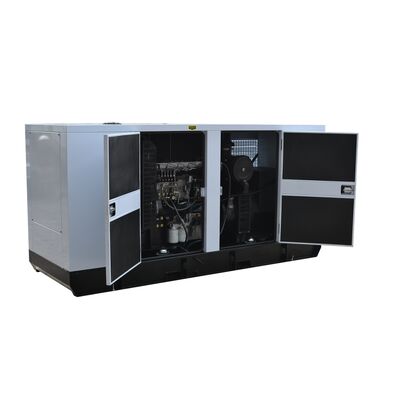

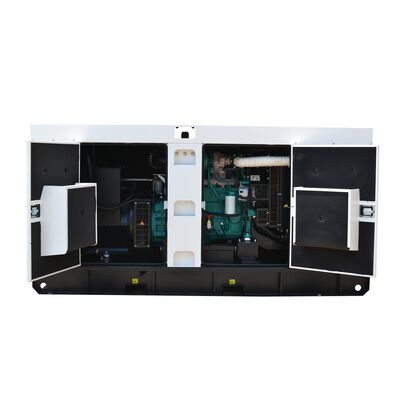

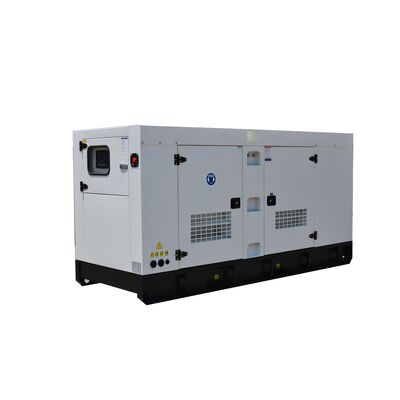

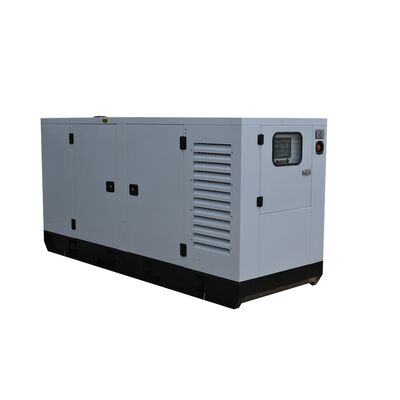

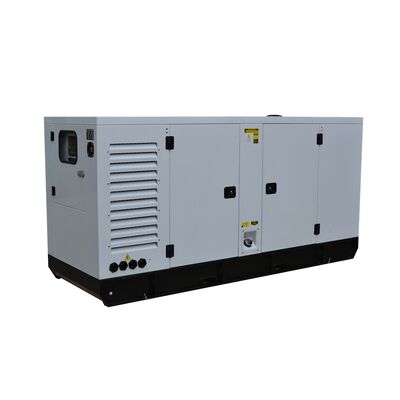

180kW Silent Diesel Generator with Digital Panel Water Cooling System
Product Overview

Our 180kW 225KVA BOBIG FAWDE diesel generator (Model: CA6DL2-27D) provides reliable power for industrial, commercial, and residential applications. Backed by the FAWDE brand, it delivers high-quality performance and long-term durability.

Key Features
Power Performance
  • Rated Power: 180kW (225KVA) for stable, efficient operation under heavy loads
  • Frequency: 50Hz standard for compatibility with most electrical equipment
Engine Excellence
  • Engine Model: CA6DL2-27D FAWDE engine with high torque, fuel efficiency, and low emissions
  • Engine Speed: 1500 RPM for smooth, consistent power supply
Technical Specifications
General Information
Specification Prime Power Standby Power
Rated Power (kVA) 225 248
Power Rating (kW) 180 198
Frequency (Hz) 50
Engine Model CA6DL2-27D
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (customizable)
Fuel Tank Capacity Operating Time ≥ 8 hours @ 75% load
Engine Specifications
Parameter Specification
Engine Model & Manufacturer CA6DL2-27D (FAWDE)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle 4 stroke
Aspiration Turbocharged & Intercooled
Cooling System Water-cooled
Bore 112 mm
Stroke 145 mm
Compression Ratio 17.5:1
Displacement 8.57 L
Dry Engine Weight 830 kg
Dimension (L*W*H) 1308*778*986 mm
Alternator Specifications
Parameter Specification
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274J
Alternator Rated Power 180kW/225kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Protection Grade IP23
Insulation Class H class
Dimensions and Weight
Model BFA248 (Open) BFA248S (Silent)
Length (mm) 2600 3700
Width (mm) 1100 1220
Height (mm) 1850 1950
Tank Capacity (L) 414 414
Applications
  • Industrial Use: Backup power for factories to ensure continuous production
  • Commercial Buildings: Power for offices, shopping malls, and hotels
  • Residential Areas: Reliable power for communities with unstable grids
Warranty and Service

BOBIG products include a one-year or 1000-hour warranty (whichever comes first). We provide free replacement of defective parts during warranty and ongoing technical support.

Why Choose Us
  • Trusted FAWDE brand reputation
  • International quality certifications (ISO, CE)
  • Customizable solutions for specific requirements
  • Professional 24/7 after-sales support
